Windows

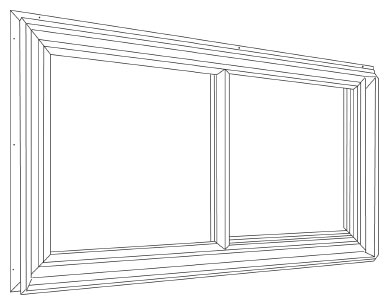

All Star Windows

Available in three styles:
Style 1 - Exterior window with 1" built in J-trim & nail flange
Style 2 - Exterior window with nail flange only, no J-trim
Style 3 - Interior window with no screen or cam lock

Features: Two glass panels, one screen panel. Panels are spring-loaded to prevent binding. No metal to metla contact between panels and frame. Panels are removeable for repair using re-usable glazing. Cam lock provided for security. Tension sealed. Self flashing. Reglazable. Available in white or brown. Optional window grills. 1" J for Metal Siding.

Close-up
All Star Window
Part # R.O. Description
WP-100000 36" Wide X 20 1/2" High J-Ext W/ "J" Trim
WP-100014 36" Wide X 20 1/2" High E-Ext W/ Plain Trim
WP-100004 36" Wide X 20 1/2" High I-Interior W/ Plain Trim
WP-100001 36" Wide X 24 1/2" High J-Ext W/ "J" Trim
WP-100015 36" Wide X 24 1/2" High E-Ext W/ Plain Trim
WP-100005 36" Wide X 24 1/2" High I-Interior W/ Plain Trim
WP-100082 36" Wide X 36" High J-Ext W/ "J" Trim
WP-100083 36" Wide X 36" High E-Ext W/ Plain Trim
WP-100084 36" Wide X 36" High I-Interior W/ Plain Trim
WP-100002 46 1/2" Wide X 20 1/2" High J-Ext W/ "J" Trim
WP-100016 46 1/2" Wide X 20 1/2" High E-Ext W/ Plain Trim
WP-100006 46 1/2" Wide X 20 1/2" High I-Interior W/ Plain Trim
WP-100003 46 1/2" Wide X 24 1/2" High J-Ext W/ "J" Trim
WP-100017 46 1/2" Wide X 24 1/2" High E-Ext W/ Plain Trim
WP-100007 46 1/2" Wide X 24 1/2" High I-Interior W/ Plain Trim
WP-100074 46 1/2" Wide X 36" High J-Ext W/ "J" Trim
WP-100075 46 1/2" Wide X 36" High E-Ext W/ Plain Trim
WP-100076 46 1/2" Wide X 36" High I-Interior W/ Plain Trim

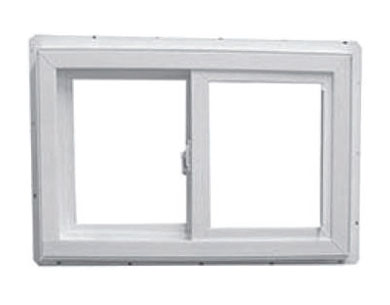

Vinyl 2-Lite Sliding Window

Features: Two-Wheel Duel Adjusting Brass Rollers. Low maintenance, all fusion welded PVC construction. 7/8" insulated glass and screen. 2-5/8" frame depth. Removeable sashes. Intergal nailing fin. Double-seal weatherstripping. Snap-in J-Channel.

Options: Painted exterior - custom colors. Trip Glazed Insulated glass. Internal or external grids. Low-E and argon filled glass.

Close-up
Vinyl 2-Lite Sliding Windows
Part # Size
VY-3624 36" X 24"
VY-3636 36" X 36"
VY-3648 36" X 48"
VY-4824 48" X 24"
VY-4836 48" X 36"
VY-4848 48" X 48"
VY-4824G 48" X 24" with grids
VY-4836G 48" X 36" with grids
VY-4848G 48" X 48" with grids

Vinyl Single-Hung Window

Features: 2-5/8" frame depth. 7/8" insulated glass. Low-E and argon filled glass. Low maintenance, all fusiion welded PVC construction. Tilt sashes. Sloped sill. Sealed upper sash. Integral nailing fin. Double-seal weatherstripping. Snap-in J-Channel.

Options: Painted exterior - custom colors. Trip Glazed Insulated glass. Internal or external grids. Dual vent locks.

Note:

Contact us for additional sizes.

Close-up
Vinyl Single Hung Windows
Part # Size
VYSH-3636 36" X 36"
VYSH-3648 36" X 48"

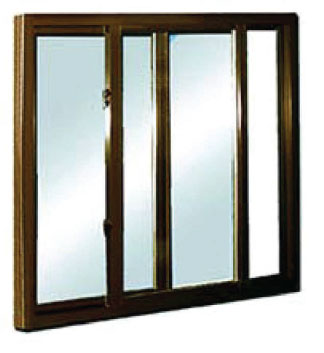

Heavy-Duty Aluminum 2-Lite Sliding Windows

Features: 3-1/4" frame depth. HS-C50 AAMA Rating. 7/8" insulated glass and screen. Two-wheel brass rollers. Removable sashes. AAMA 2604 powder coat finish.

Options: Custom colors/finishes. Nailing fin. Casement fin. Internal or external grids. Low-E and argon filled glass.

Close-up
Vinyl Single Hung Windows
Part # Size
AMI-3624 36" X 24"
AMI-3636 36" X 36"
AMI-3648 36" X 48"
AMI-4824 48" X 24"
AMI-4836 48" X 36"
AMI-4848 48" X 48"
AMI-4824G 48" X 24" with grids
AMI-4836G 48" X 36" with grids
AMI-4848G 48" X 48" with grids

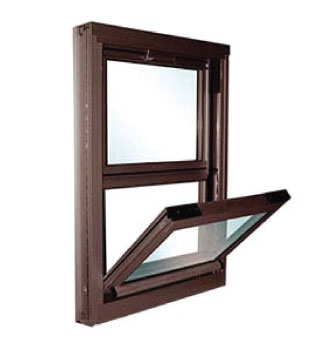

Heavy-Duty Aluminum Double-Hung Windows

Features: 3-1/4" frame depth. AAMA CW-PG50 / C60. 7/8" insulated glass and screen. PPG "Intercept" insulated glass spacer. Tilt sashes. Sloped sill. Anti-drift head clip lock.

Options: Custom colors/finishes. Casement fin. Internal or external grids. Low-E and argon filled glass. Continuous head and sill.

Close-up
Vinyl Single Hung Windows
Part # Size
AMIDV-3636 36" X 36"
AMI-3648 36" X 48"
