Box Track
Box track, 16 gauge galvanized steel for doors weighing up to 400 lbs. To order, specify track number and length, in bundle quantities per price list.

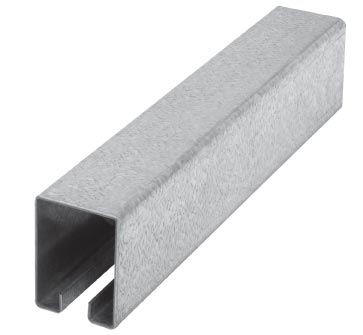

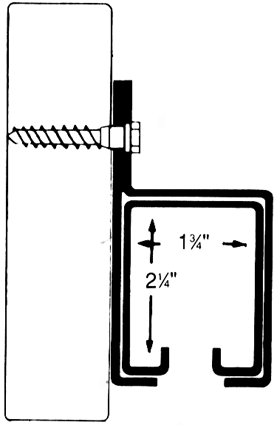

#2 Track
Versatile and popular. Use with any Box Track Brackets. For single track runs, space brackets 24" on center. Double-track runs require brackets every 18" o.c. respectively. 16 gauge galvanized steel.
Available lengths:6' 8' 10' 12' 14' 16' 18' 20' 24'

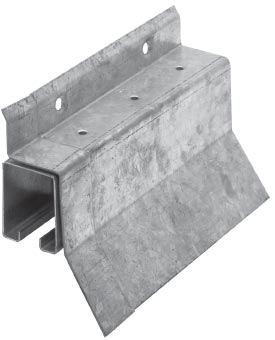

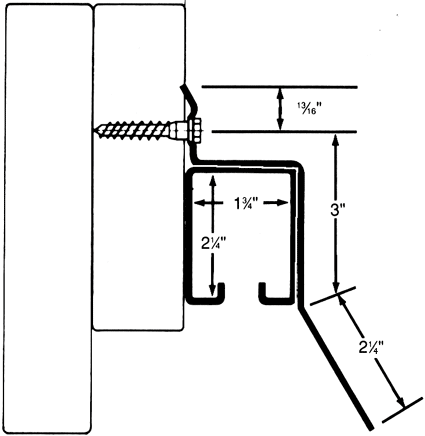

#7 Track
Works well with new construction or remodeling projects. Extra-wide galvanized cover is mechanically attached to box track and shields top of door from rain, snow, and ice. No brackets or flashing required. Mount with 5/16" lag screws or bolts.
Available lengths:8' 10' 12' 14' 16' 18' 20'

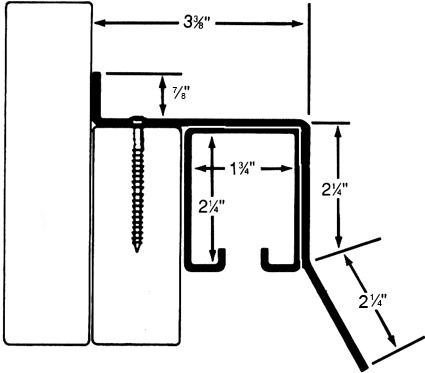

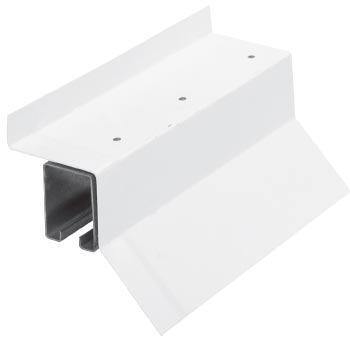

#8 Track
The ultimate labor-saving track. No brackets or flashing required with the prepainted white cover; attach with 1-1/2" ring-shank neoprene washer nails. White cover is mechanically attached to box track and shields top of door from rain, snow, and ice.
Available lengths:8' 10' 12' 14' 16' 18' 20'

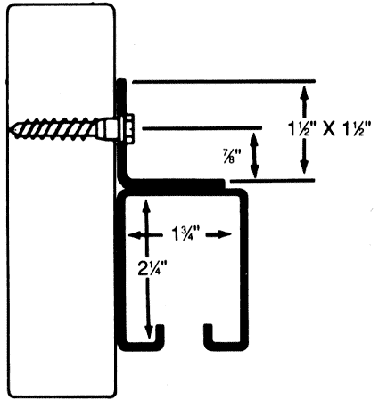

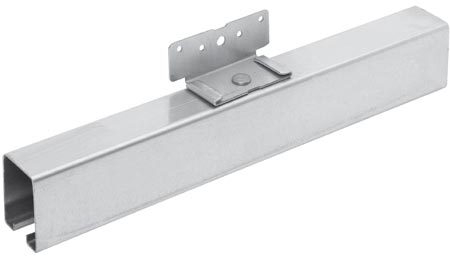

#9 Track
Face-mount track attaches with 5/16" lag screws or bolts. Mounting brackets are approximately 24" on center and attached with rivets at the factory.
Available lengths:8' 10' 12' 14' 16' 18' 20' 24'

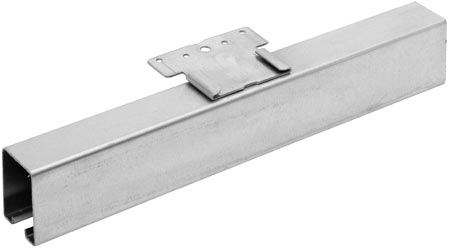

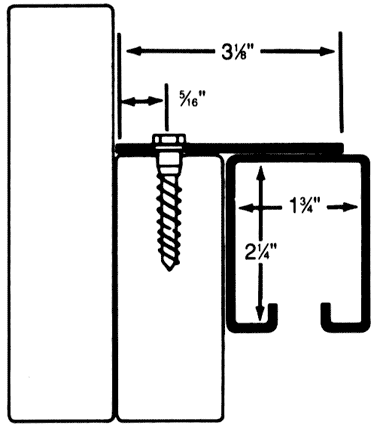

#10 Track
Top mount track attaches with 1-1/2" ring shank neoprene washer nails. (5/16" lag screws or bolts may also be used if desired.) Mounting brackets are approximately 24" on center and attached with rivets at the factory.
Available lengths:8' 10' 12' 14' 16' 18' 20' 24'

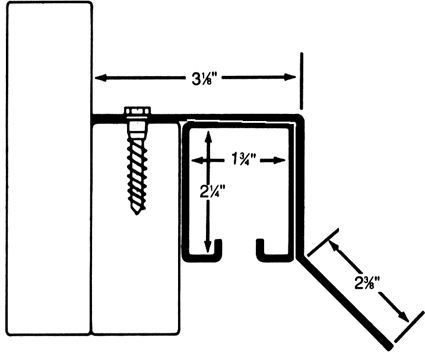

#510 Track
Top mount track attaches with 1-1/2" ring shank neoprene washer nails. (5/16" lag screws or bolts may also be used if desired.) Combination mounting/flashing brackets are projection welded at the factory, and are approximately 24" on center.
Available lengths:8' 10' 12' 14' 16' 18' 20' 24'
