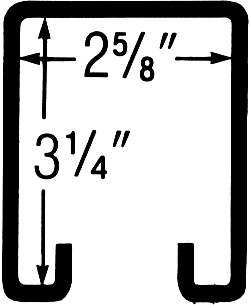

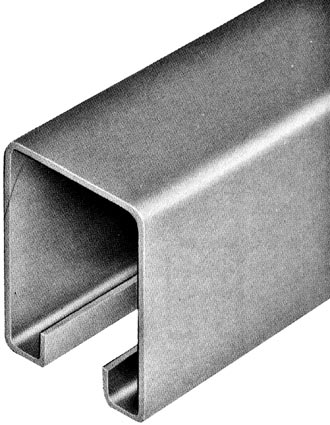

#4 Heavy Duty Track (1,000 lb. capacity)

For doors 2-1/4" to 3-1/4" thick, weighing up to 1,000 lbs. if brackets are spaced no more than 18" on center. (Double brackets - 12" o.c.) Extra heavy duty 13-gauge track with galvanized finish for long corrosion-free life.

8' 10' 12'

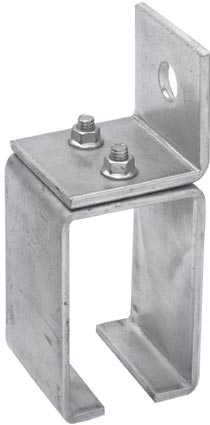

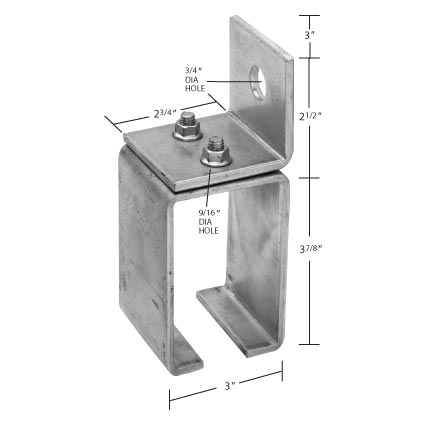

9-4C Heavy Duty Bracket

Brackets are made of heavy-duty 3/16" steel, with zinc-plated finish. Mounting holes accommodate 3/4" bolts or lag screws. (Not included)

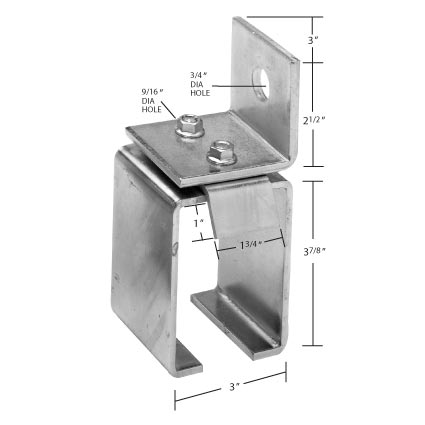

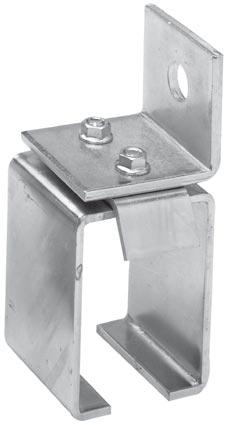

9-4J Heavy Duty Bracket

Brackets are made of heavy-duty 3/16" steel, with zinc-plated finish. Mounting holes accommodate 3/4" bolts or lag screws. (Not included)

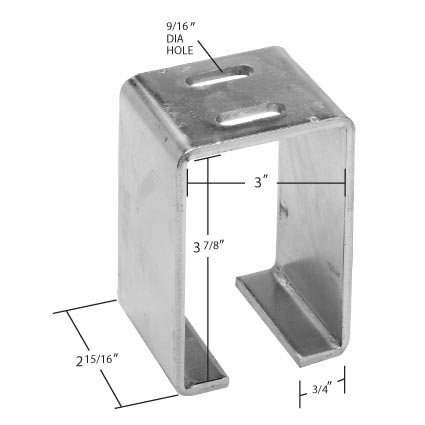

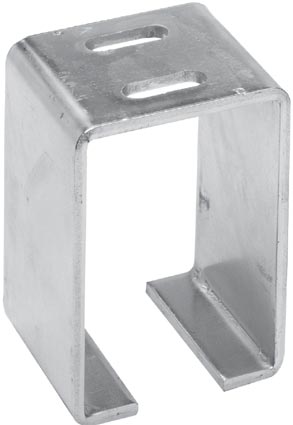

4-4C Heavy Duty Bracket

Brackets are made of heavy-duty 3/16" steel, with zinc-plated finish. Mounting holes accommodate 3/4" bolts or lag screws. (Not included)

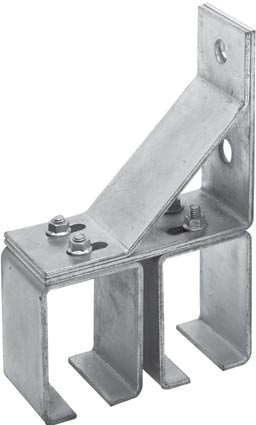

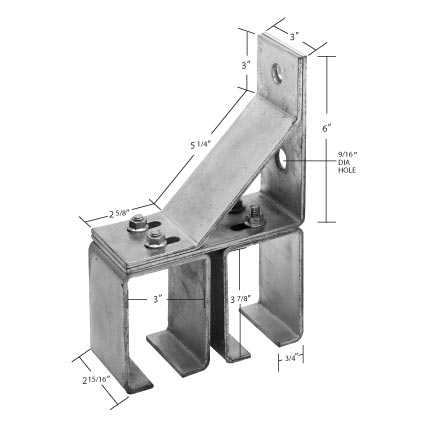

8-4C Heavy Duty Bracket

Brackets are made of heavy-duty 3/16" steel, with zinc-plated finish. Mounting holes accommodate 3/4" bolts or lag screws. (Not included)

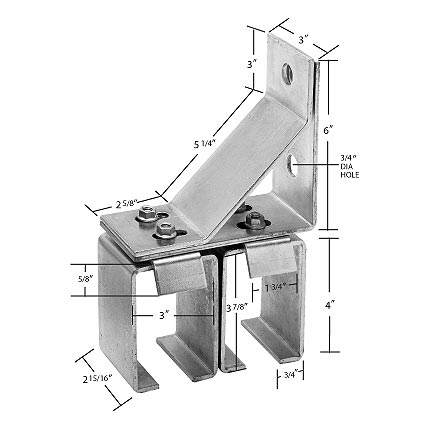

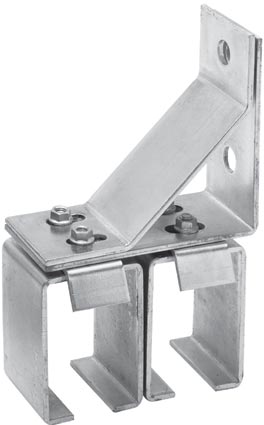

8-4J Heavy Duty Bracket

Brackets are made of heavy-duty 3/16" steel, with zinc-plated finish. Mounting holes accommodate 3/4" bolts or lag screws. (Not included)

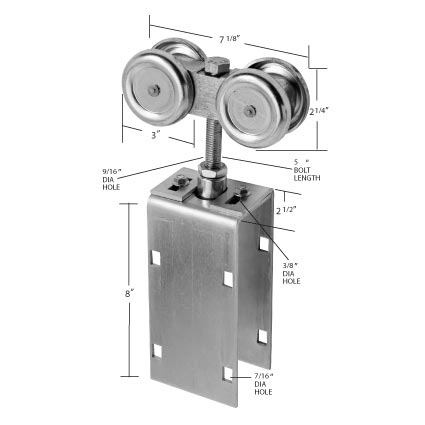

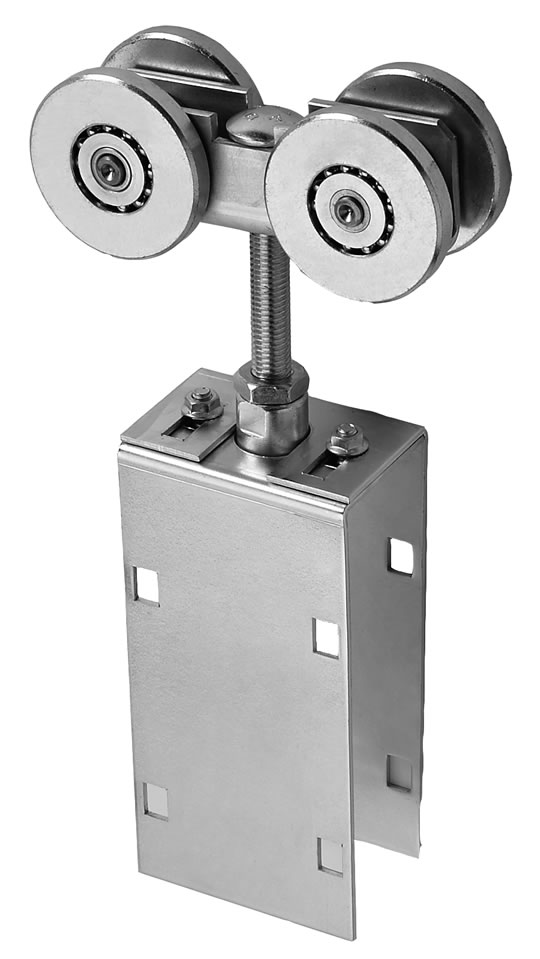

251-S-1 Hanger

Made of heavy-duty 11 gauge galvanized steel, both are vertically and laterally adjustable. Wheels are 3" in diameter, 5/16" thick, and zinc plated. Bolt size is 5/8" x 11" - 5" long.

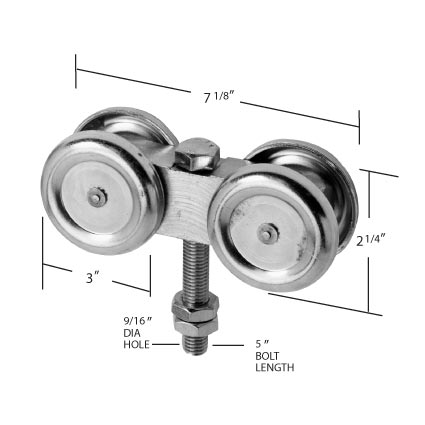

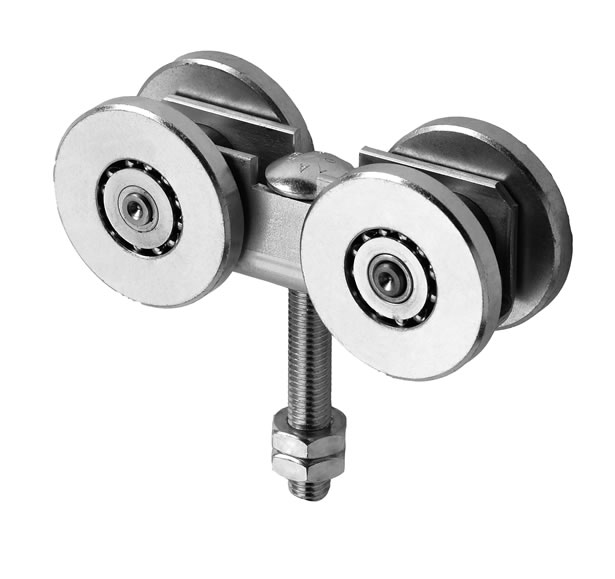

251-S-1T Trolley

Made of heavy-duty 11 gauge galvanized steel, both are vertically and laterally adjustable. Wheels are 3" in diameter, 5/16" thick, and zinc plated. Bolt size is 5/8" x 11" - 5" long.
