Horse Stalls

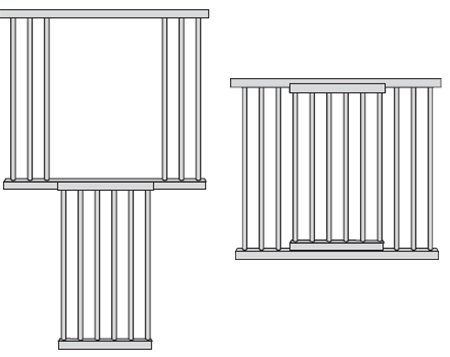

Western's Drop-Down Door Grill (80350)
Features 1" round 14 ga. tubing welded 3" o/c., in 14 ga. channels that are lumber fit for 2 x 6 or 2 x 8 standard lumber. Available in a 36" x 45" section, with a 23" x 35" opening and is black powder coated.

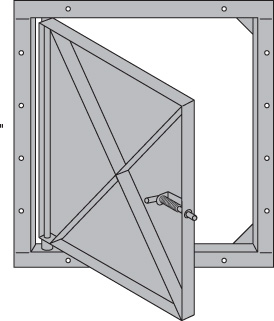

SwingOut Utility Door (82022)
Made of heavy duty 12 guage steel mounted on a sturdy angle iron frame. Accommodates a wide variety of feeders, buckets, and bucket holders. Can be installed to swing out from left or right by simply inverting the frame. Latch is designed so that the door cannot be opened from the inside. Outside dimensions are 24-3/4" high x 22-1/2" wide. (Bucket not included.)

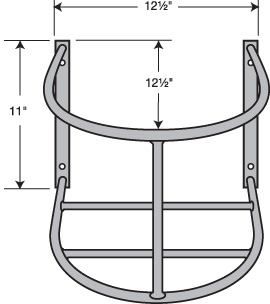

Bucket Holder (82032)
Constructed of 1/2" round steel bar stock welded to 1" wide 11 gauge mounting plates wiht four holse for rigid mounting. Inside dimensions are 12-1/2" wide x 12=1/2" deep x 11" high. (Fasteners not included.)

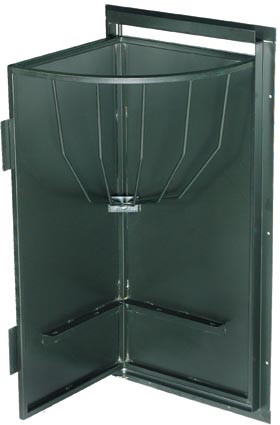

SwingOut Hay/Grain Feeder (82448)
Our best feeder, this front wall mounted feeder is fully reversible by switching hinge pin for left or right side mounting. Hay rack privides ample room for a generous flake. Welded angle supports for mounting plastic corner bucket. (Bucket not included.) Powder coated black with a #630 sliding latch included.

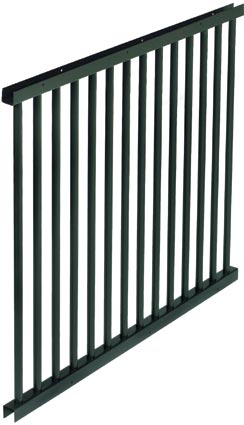

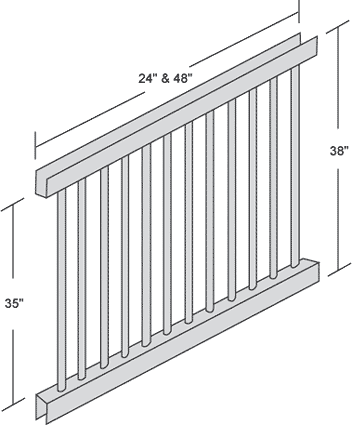

Front Wall Grille - 24" (80240) / 48" (80480)
Features 1" round 14 ga. tubing welded 3" o/c., and 14 ga. channel-lumber fit for 2 x 6 or 2 x 8 standard lumber. Black powder coating. Available in 36" x 48" and 36" x 24" sections.
Feed Chute Grille (81209)
Features 1" round 14 ga. tubing welded 3" o/c., and 14 ga. channel-lumber fit for 2 x 6 or 2 x 8 standard lumber. Black powder coating. Available in 48" wide x 36" high sections with 9" x 9" opening.
