Round Track

Western’s full round track is backed by a lifetime warranty, assuring years of quality operation. The 14 gauge galvanized construction will hold up to 600 pounds on single truck Delrin trolleys and 1,200 pounds on double truck trolleys*. The slotted keyway design (#11 track) is spaced 24” O.C. and allows for multiple bracket applications, making it one of the most versatile models available. Factory mounted brackets are also available ranging from top mount for track and cover (#11A track), face mount for track only (#11B track) and face mount for track and cover (#11C track). All options are available in 6’, 8’, 10’, 12’, 14’, 16’, 18’ and 20’ lengths.

The #12 White Covered Track features the 14 gauge full round track with a heavy 18 gauge factory mounted white cover to provide weather protection. This one piece design for doors up to 5” in thickness has the optional end trim and is available in 8’, 10’, 12’, 14’, 16’, 18’ and 20’ lengths and is sold in pairs.

*Brackets mounted every 12”.

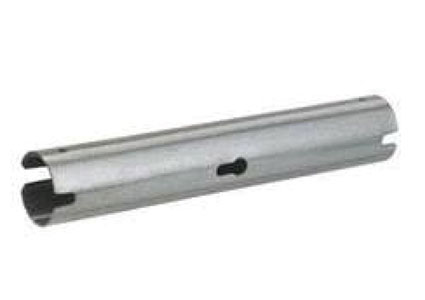

#11 Slotted

Brackets sold seperately for single and double track runs.

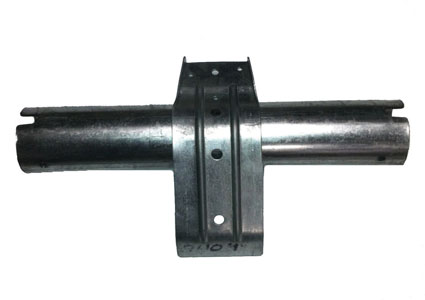

#11A Top Mount

Brackets attached at the factory.

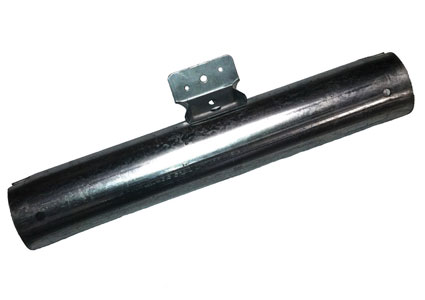

#11B Short Face Mount

Brackets attached at the factory.

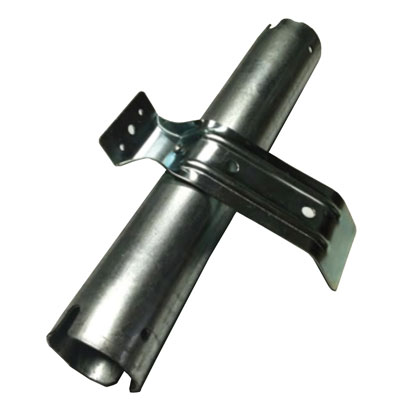

#11C Face Mount

Brackets attached at the factory.

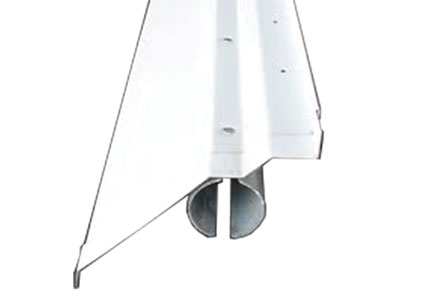

#12 White Covered

18 GA white cover attached at the factory.

*for doors up to 5" thick
