Walk Doors
Standard Entry Door
ST26 Door Series

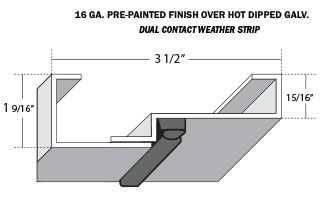

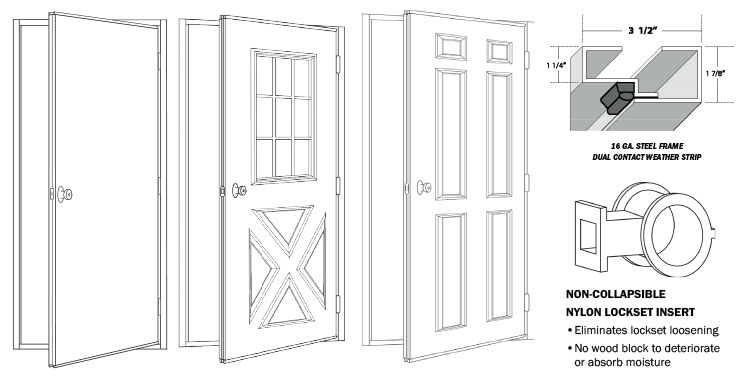

Additional Features Full 1-3/4" thick panel w/ 26 Ga. skins. Exclusive inner lock design puts frame on inside of door for quality commerical appearance. All steel frame - all steel skin, pre-hung. Frame has common header/threshold and nailing and non-nailing jamb and meets handicap specifications. Nylon lockset insert eliminates lockset loosening - no wood block to deteriorate or absorb moisture. Pre-finished steel frame with Dual Contact weather strip. Fixed-pin hinges. 2-3/4" backset standard.
Options Available For All AS Doors Windows. Dead bolt lockset. Door closer. Double door with astragal - no center post.
ST26 Door | ||
Part # | Actual Unit Size | Description |
ST26-2868 | 34 5/8 X 80 5/8 ALL STEEL | 2/8 X 6/8 ALL STEEL |
ST26-3068 | 38 5/8 X 80 5/8 ALL STEEL | 3/0 X 6/8 ALL STEEL |
ST26-3070 | 38 5/8 X 84 5/8 ALL STEEL | 3/0 X 7/0 ALL STEEL |
ST26-4068 | 48 5/8 X 80 5/8 ALL STEEL | 4/0 X 6/8 ALL STEEL |
ST26-4070 | 48 5/8 X 84 5/8 ALL STEEL | 4/0 X 7/0 ALL STEEL |
DOUBLE DOORS | ||
ST26-6068 | 74 15/16 X 81 3/8 ALL STEEL | 6/0 X 6/8 ALL STEEL |
ST26-6070 | 74 15/16 X 85 3/8 ALL STEEL | 6/0 X 7/0 ALL STEEL |
ST24 Door
Additional Features Available in white or brown. Universal 4 way swing, unless supplied with a window. 24 Ga skin.
ST24CB Cross Buck
Additional Features Available in white only. Cross buck design on both sides. Must specify swing when ordering. 24 Ga skin.
ST24CB Door | ||
Part # | Actual Unit Size | Description |
ST24CB-3068WCB | 38 5/8 X 80 5/8 | 3/0 X 6/8 White Cross Buck |
DOUBLE DOORS | ||
ST24CB-6068WCB | 74 15/16 X 81 3/8 | 6/0 X 6/8 White Cross Buck |
ST24-6P Door
Additional Features Available in white only. 6 panel design on both sides. Must specify swing when ordering. 24 Ga skin.
ST24-6P Door | ||
Part # | Actual Unit Size | Description |
ST24-6P-3068 | 38 5/8 X 80 5/8 | 3/0 X 6/8 Wht 6 pnl stl dr rh |
DOUBLE DOORS | ||
ST24-6P-6068 | 74 15/16 X 81 3/8 | 6/0 X 6/8 Wht 6 pnl stl dr |

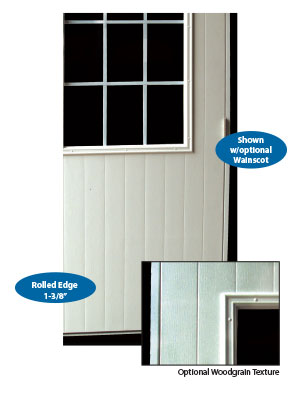

ST26NL-1 Narrow Line Frame
Additional Features Full 1-3/8" thick panel Pre-finished Steel. Wrap-around design gives commerical look to panel. Pre-hung 4-way universal swing. Frame has common header/threshold. 2-3/4" backset standard. Fixed-pin hinges. Nylon lockset insert. 16 Ga. Pre-painted finish over hot dipped Galv. 26 Ga. skins Pre-finished but paintable. Filled with Insulated Polyurethane Foam.
Options Windows. Dead bolt lockset. Door closer. Double door with astragal. 24 ga. skins (ST24NL-1). Available in White.
Please Note:Woodgrain currently only available in 3/0 X 6/8 or smaller.
ST24-6P Door | ||
Part # | Actual Unit Size | Description |
ST26NL-1-2868W | 33 7/8 X 80 5/8 | 2/8 X 6/8 ALL STEEL |
ST26NL-1-3038W | 37 7/8 X 80 5/8 | 3/0 X 6/8 ALL STEEL |
ST26NL-1-3070W | 37 7/8 X 84 5/8 | 3/0 X 7/0 ALL STEEL |
ST26NL-1-4068W | 47 7/8 X 80 5/8 | 4/0 X 6/8 ALL STEEL |
ST26NL-1-4070W | 47 7/8 X 84 5/8 | 4/0 X 7/0 ALL STEEL |
DOUBLE DOORS | ||
ST26NL-1-6068W | 74 15/16 X 81 1/16 | 6/0 X 6/8 ALL STEEL |
ST26NL-1-6070W | 74 15/16 X 85 1/16 | 6/0 X 7/0 ALL STEEL |

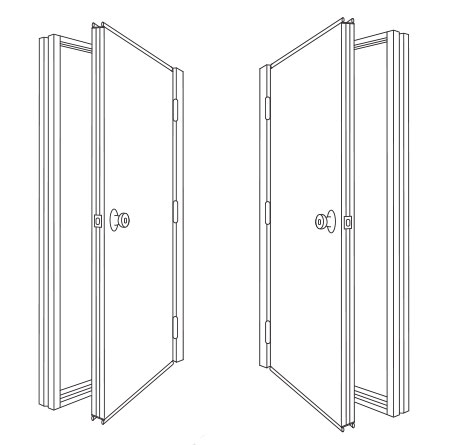

ST24HD Door
Standard door for masonry construction 40" R.O. width.

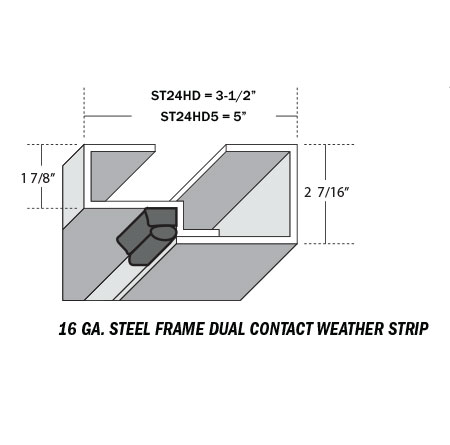

Features Full 1-3/4" thick fully insulated panel. Pre-hung 4-way universal swing. 24 Ga. steel door skins. Available in White (w) or Bronze (bz). Three fixed-pin hinges with reinforced plates. 3 1/2" - 16 Ga. pre-finished steel frame. 1/2" Threshold meets handicap specifications.
Options Windows. Dead bolt lockset. Door closer. Double door with astragal. 26 Ga. steel door skins (ST26HD).
ST24HD Door - Universal 4-Way Swing | ||
Part # | Actual Size | Description |
ST24HD-3038 | 39 13/16 X 80 5/8 | 3068 Steel Door Wide Frame |
ST24HD-3070 | 39 13/16 X 84 5/8 | 3070 Steel Door Wide Frame |
ST24HD-3080 | 39 13/16 X 96 | 3080 Steel Door Wide Frame |
ST24HD-4068 | 49 13/16 X 80 5/8 | 4068 Steel Door Wide Frame |
ST24HD-4070 | 49 13/16 X 84 5/8 | 4070 Steel Door Wide Frame |
Double Doors | ||
ST24HD-6068 | 76 13/16 X 82 | 6068 Steel Door Wide Frame |
ST24HD-6070 | 76 13/16 X 86 | 6070 Steel Door Wide Frame |
ST24HD-6080 | 76 13/16 X 97 3/8 | 6080 Steel Door Wide Frame |
ST24HD5 Door
Ideal door for steel buildings 40" R.O. width.
Features Full 1-3/4" thick fully insulated panel. Pre-hung 4-way universal swing. 24 Ga. steel door skins. Available in White (w) or Bronze (bz). Three fixed-pin hinges with reinforced plates. 5" - 16 Ga. pre-finished steel frame. Exclusive innerlock design puts frame inside of door for quality commercial appearance.
Options Windows. 26 Ga. skins (ST26HD5). Dead bolt lockset. Door closer. Double door with astragal.
ST24HD Door | ||
Part # | Actual Size | Description |
ST24HD5-3038 | 39 13/16 X 80 5/8 | 3/0 X 6/8 - CH5-Steel Door-5" Frame |
ST24HD5-3070 | 39 13/16 X 84 5/8 | 3/0 X 7/0 - CH5-Steel Door-5" Frame |
ST24HD5-3080 | 39 13/16 X 96 | 3/0 X 8/0 - CH5-Steel Door-5" Frame |
ST24HD5-4068 | 49 13/16 X 80 5/8 | 4/0 X 6/8 - CH5-Steel Door-5" Frame |
ST24HD5-4070 | 49 13/16 X 84 5/8 | 4/0 X 7/0 - CH5-Steel Door-5" Frame |
Double Doors | ||
ST24HD5-6068 | 76 13/16 X 82 | 6/0 X 6/8 - CH5-Steel Door-5" Frame |
ST24HD5-6070 | 76 13/16 X 86 | 6/0 X 7/0 - CH5-Steel Door-5" Frame |
ST24HD5-6080 | 76 13/16 X 97 3/8 | 6/0 X 8/0 - CH5-Steel Door-5" Frame |

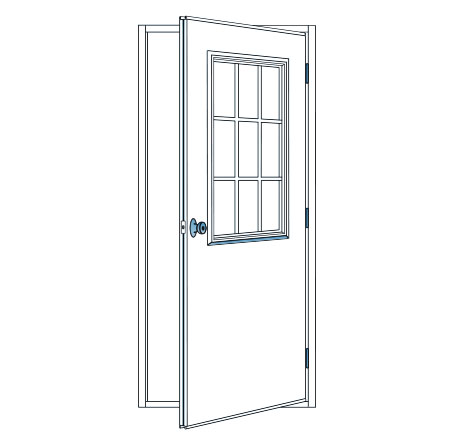

TB24 Door
Heavy-duty pre-finished steel door.
Features Full thermal break of jambs, header / threshold and panel. 16 Ga. x 3 1/2" pre-painted jambs - white or bronze. 24 Ga. pre-painted dool panel white, bronze, brown. Full perimeter weatherstripping. Universal 4 way swing. 3'0" x 6'8" and 3'0" x 7'0" standard sizes. Three fixed-pin hinges. Nylon lockset insert. Adjustable strike plate. Prepped for closure.
Options Windows. Dead bolt lockset. Door closure. Double door with astragal.
Available Colors:White, Bronze, or Brown. Add W for White, BZ for Bronze, or BR for Brown to the end of the part#.
The Thermal Break Quality Door Provides:Excellent energy savings. Attractive seamless appearance. Economy with durability. Ease of installation. Low maintenance (no painting).
TB24 Door - Universal 4-Way Swing | ||
Part # | Actual Unit Size | Description |
TB24-3068 | 38 5/8 X 80 5/8 | 3/0 X 6/8 Thermal Door |
TB24-4068 | 48 5/8 X 80 5/8 | 4/0 X 6/8 Thermal Door |
TB24-3070 | 38 5/8 X 84 5/8 | 3/0 X 7/0 Thermal Door |
TB24-4070 | 48 5/8 X 84 5/8 | 4/0 X 6/8 Thermal Door |
Double Doors | ||
TB24-6068 | 74 15/16 X 81 3/8 | 6/0 X 6/8 Thermal Door |
TB24-6070 | 74 15/16 X 85 3/8 | 6/0 X 7/0 Thermal Door |
TB24-8080 | 95 X 96 | 8/0 X 8/0 Thermal Door |

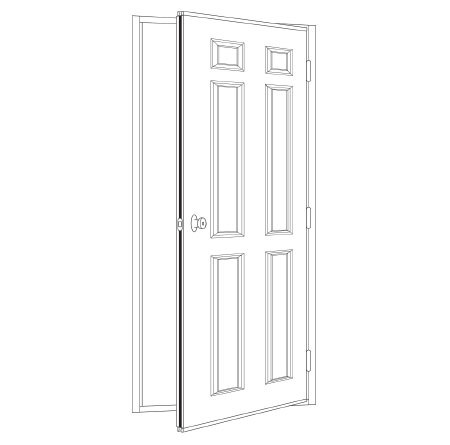

TB24-6P Door

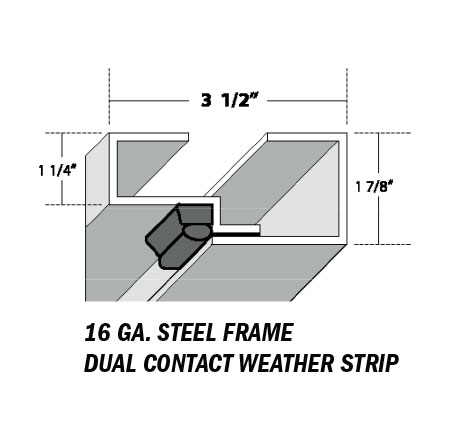

Features Full thermal break of jambs, header / threshold and panel. 16 Ga. x 3 1/2" pre-painted jambs white. 24 Ga. pre-painted dool panel white, bronze, brown. Full perimeter weatherstripping. Universal 4 way swing. Three fixed-pin hinges. Nylon lockset insert. Adjustable strike plate. Prepped for closure.
Options Windows. Dead bolt lockset. Door closure. Double door with astragal.
Available Colors:White, Bronze, or Brown. Add W for White, BZ for Bronze, or BR for Brown to the end of the part#.
TB24-6P Door | ||
Part # | Actual Unit Size | Description |
TB24-6P-3068 | 38 5/8 X 80 5/8 | 3/0 X 6/8 T8 - 6 pnl stl door |
Double Doors | ||
TB24-6P-6068 | 74 15/16 X 81 3/8 | 6/0 X 6/8 T8 - 6 pnl stl door |
ST26HDE Door
Features Full 1-3/4" thick fully insulated panel. Prehung 4 way universal swing. 26 Ga. steel door skins. Three zinc plated hinges. 3-1/2" prepainted steel frame. Aluminum header/treshold meets handicap specifications.
Options Windows. Dead bolt lockset. Door closure. Stainless steel hinges.
ST26HDE Door | ||
Part # | Actual Size | Description |
ST26HDE-2868 | 35 13/16 X 80 5/8 | 3068 Steel Door Wide Frame |
ST26HDE-3068 | 39 13/16 X 80 5/8 | 3068 Steel Door Wide Frame |
ST26HDE-3070 | 39 13/16 X 84 5/8 | 3070 Steel Door Wide Frame |
ST26HDE-3080 | 39 13/16 X 96 | 3080 Steel Door Wide Frame |
ST26HDE-4068 | 49 13/16 X 80 5/8 | 4068 Steel Door Wide Frame |
ST26HDE-4070 | 49 13/16 X 84 5/8 | 4070 Steel Door Wide Frame |
Double Doors | ||
ST26HDE-6068 | 76 13/16 X 82 | 6068 Steel Door Wide Frame |
ST26HDE-6070 | 76 13/16 X 86 | 6070 Steel Door Wide Frame |
ST26HDE-6080 | 76 13/16 X 97 3/8 | 6080 Steel Door Wide Frame |

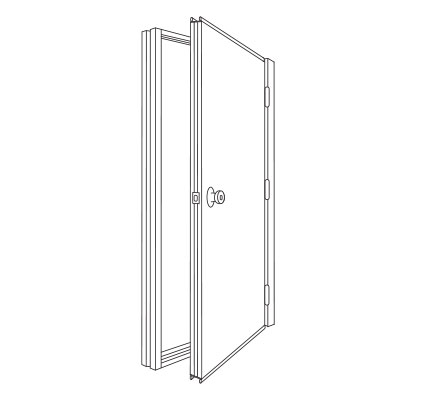

AL26 Door
Features Full 1-3/4" thick panel. Wrap-around design gives commercial look to panel. Pre-hung 4-way universal swing. Frame has common header/threshold and nailing and non-nailing jambs. Available in white, brown, or mill frame. 2-3/4" backset standard. Fixed-pin hinges. Nylon lockset insert. Aluminum frame. 26 Ga. skins.

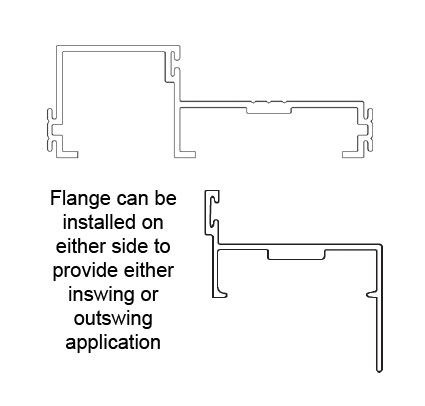

Options Windows. Dead bolt lockset. Door closer. Double door with astragal. Nail flange - installed or packaged separately. 24 Ga. skins (AL24).
AL26 Door - Universal 4-Way Swing | ||
Part # | Actual Unit Size | Description |
AL26-2868 | 33 5/16 X 81 1/8 | 2/8 X 6/8 Mill Frame Steel Pnl |
AL26-2868 | 33 5/16 X 81 1/8 | 2/8 X 6/8 Painted Frame Steel Pnl |
AL26-3068 | 37 5/16 X 81 1/8 | 3/0 X 6/8 Mill Frame Steel Pnl |
AL26-3068 | 37 5/16 X 81 1/8 | 3/0 X 6/8 Painted Frame Steel Pnl |
AL26-4068 | 47 5/16 X 81 1/8 | 4/0 X 6/8 Mill Frame Steel Pnl |
AL26-4068 | 47 5/16 X 81 1/8 | 4/0 X 6/8 Painted Frame Steel Pnl |
Double Doors | ||
AL26-6068 | 73 11/16 X 81 1/8 | 6/0 X 6/8 Mill Frame Steel Pnl |
AL26-6070 | 73 11/16 X 81 1/8 | 6/0 X 6/8 Painted Frame Steel Pnl |

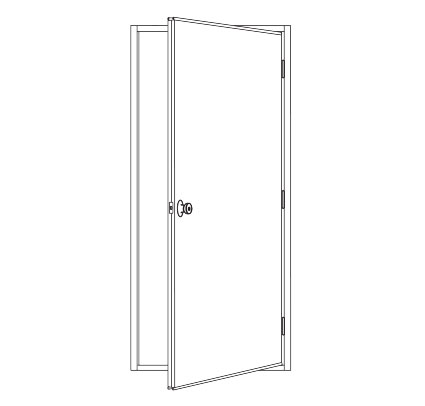

AL26U Utility Door
Features Full 1-3/4" thick panel. Wrap-around design gives commercial look to panel. Frame has common header/threshold and nailing flange standard. Available in white only. 2-3/4" backset standard. Economy and durability. All aluminum pre-painted frame. 2-3/4" backset standard. Low maintenance (no painting). Fixed-pin hinges. Pre-hung universal swing. Nylon lockset insert eliminates lockset loosening - no wood block to deteriorate or absorb moisture. 26 Ga. skins.
Options Windows. Stainless steel roller bearing hinges. Dead bolt lockset. Door closer. Double door with astragal. 24 Ga. skins (AL24U).
AL26U Utlility Door - White Only | ||
Part # | Actual Unit Size | Description |
AL26U-3060 | 36 13/16 X 72 5/8 | 3/0 X 6/0 Steel Door |
AL26U-3068 | 36 13/16 X 80 5/8 | 3/0 X 6/8 Steel Door |
AL26U-4060 | 46 13/16 X 72 5/8 | 4/0 X 6/0 Steel Door |
AL26U-4068 | 46 13/16 X 80 5/8 | 4/0 X 6/8 Steel Door |
Double Doors | ||
AL26U-6060 | 73 13/16 X 72 5/8 | 6/0 X 6/0 Steel Door |
AL26-6070 | 73 13/16 X 80 5/8 | 6/0 X 6/8 Steel Door |
