Sliding Door Systems

White Steel or White Aluminum Quick Frames can be assembled with standard 2 x 4 lumber or galvanized Steel Box Girts as horizontals. Western Products recommends spacing these horizontals approximately 24" to 28" on center. Wood or steel inserts can be placed inside the vertical channel between each horizontal. Inserts should be permanently attached with screws, becoming part of the frame. This is suggested to help prevent damage to the doors in windy conditions. Use self tapping tek screws.

White Aluminum

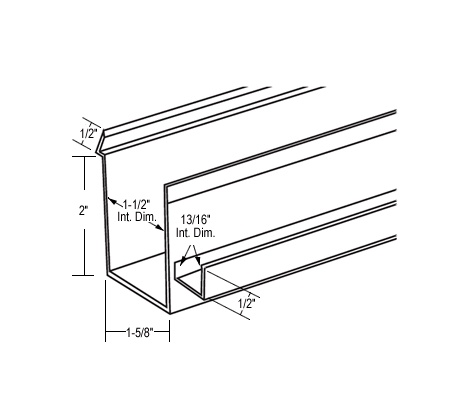

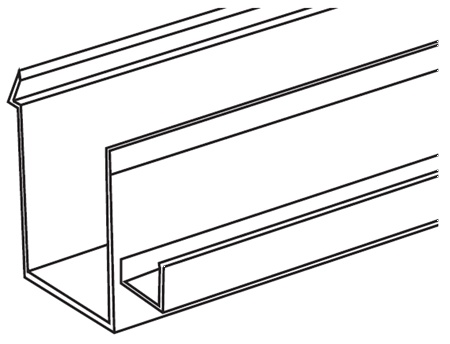

1001 White Aluminum Quick Frame

Is lumber fit for standard 2 x 4 or 2 x 6 and provides smooth, safe sides for door openings. Packaged in pieces, bundled per order.

Available lengths:

8', 10', 12', 14', 16'

Print Dimensions

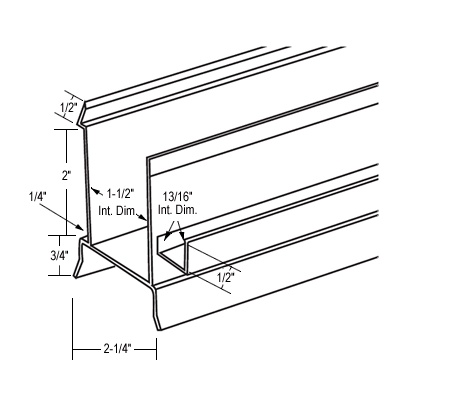

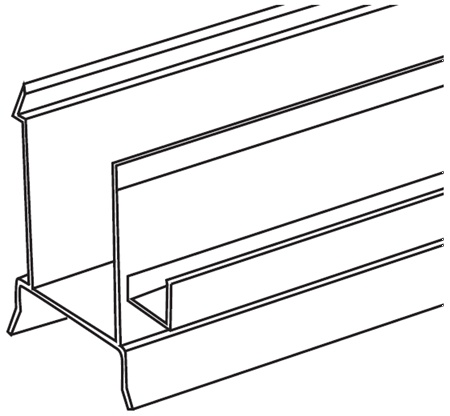

1002 White Aluminum H-Frame

Designed for use with bi-parting doors, provides concealed mating between units covering both door edges. Packaged in pieces, bundled per order.

Available lengths:

8', 10', 12', 14', 16'

Print Dimensions

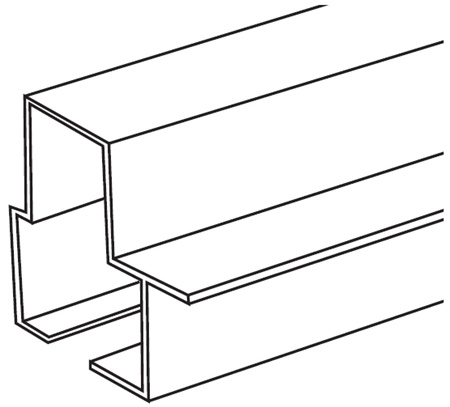

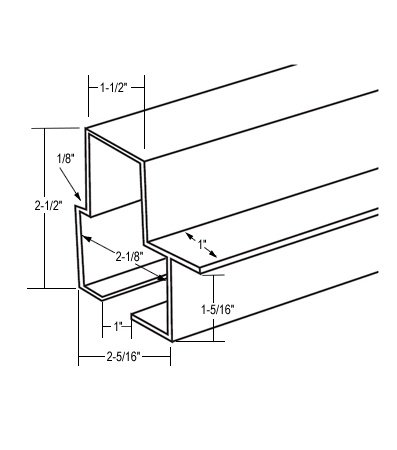

1003 White Aluminum Bottom Rail

Attaches to bottom of door and accepts the #64 Rail Guide to firmly anchor and guide door along building during operation. Order for doors 1-1/2" thick.

Available lengths:

8', 10', 12', 14', 16', 18', 20'

Print Dimensions

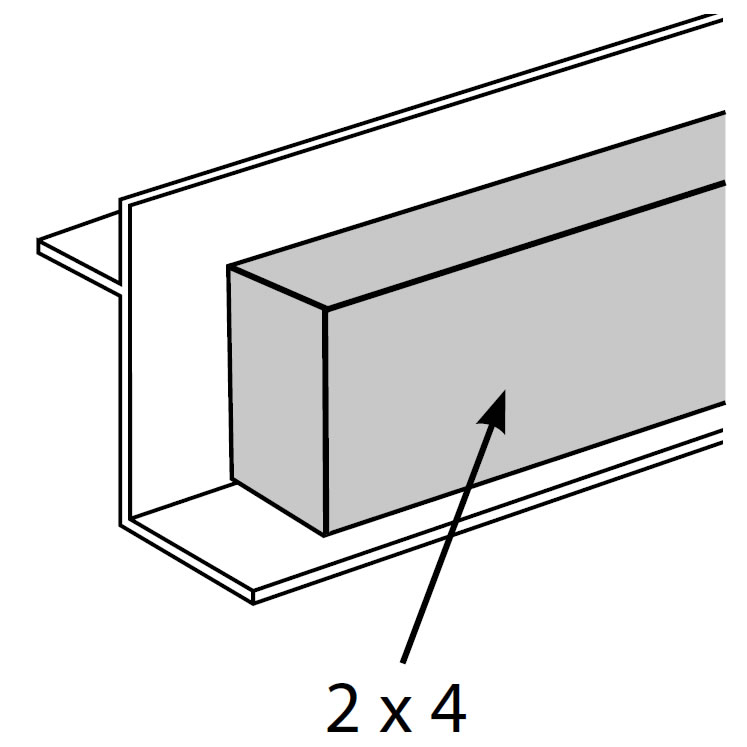

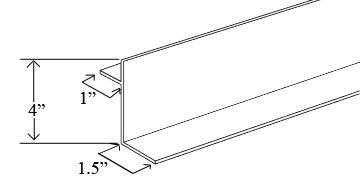

1005 White Aluminum Bottom Rail

Mounts on face of wood bottom rail and provides a smooth surface for a stay roller.

Available lengths:

8', 10', 12', 14', 16', 18', 20'

Print Dimensions

Box Girt/Horizontal

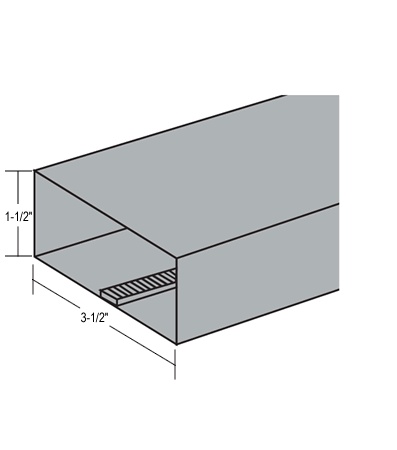

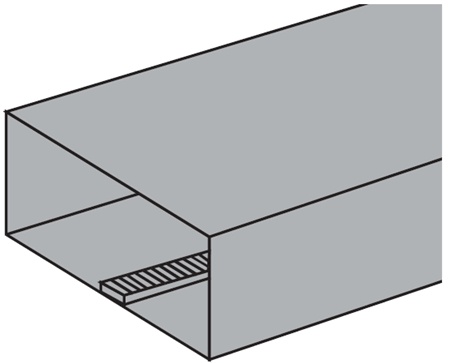

2004 Galvanized Steel Girt

Made from 20 gauge galvanized steel (1-1/2" x 3-1/2" lock seamtube). Can be used in place of wood horizontal girts to eliminate warping, bowing, and cracking of door panels. Weight is 1.3 lbs./ft. Available in 6' - 20' lengths.

Print Dimensions
