Sliding Door Systems
White Steel or White Aluminum Quick Frames can be assembled with standard 2 x 4 lumber or galvanized Steel Box Girts as horizontals. Western recommends spacing these horizontals approximately 24" to 28" on center. Wood or steel inserts can be placed inside the vertical channel between each horizontal. Inserts should be permanently attached with screws, becoming part of the frame. This is suggested to help prevent damage to the doors in windy conditions.

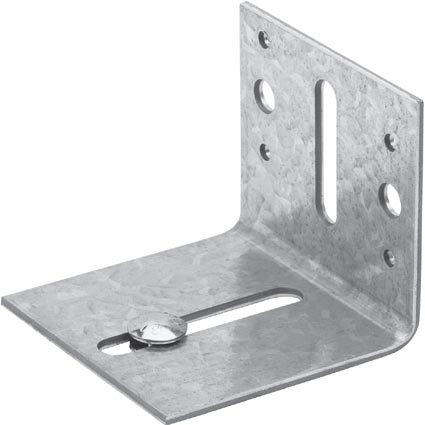

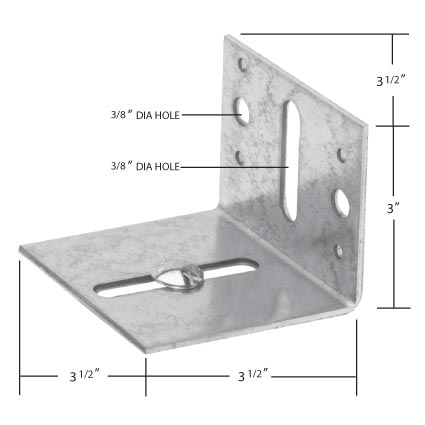

#60 Guide Rail Bracket
For use with #64 Guide Rail. Slotted hole in each leg allows both lateral and vertical adjustments. Bolts and nuts included.

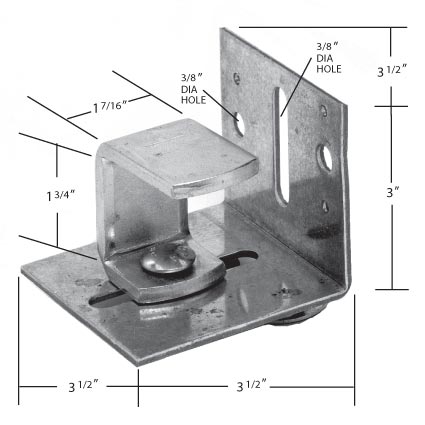

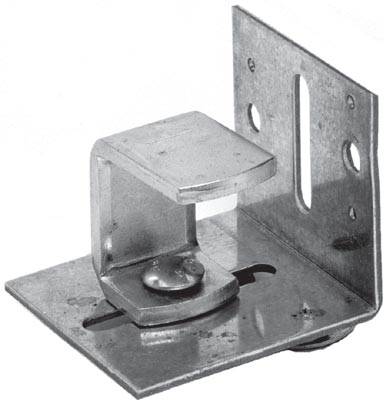

#68 Single Door Stop
For use with #64 Guide Rail System. Stops door and prevents from disengaging with guide rail.

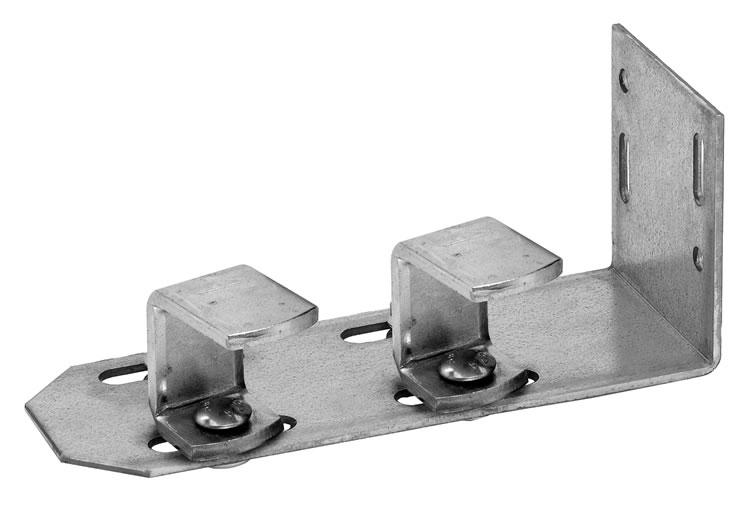

#68 DDS Double Door Stop
For use with #64 Guide Rail. Slotted hole in each leg allows both lateral and vertical adjustments. Bolts and nuts included.

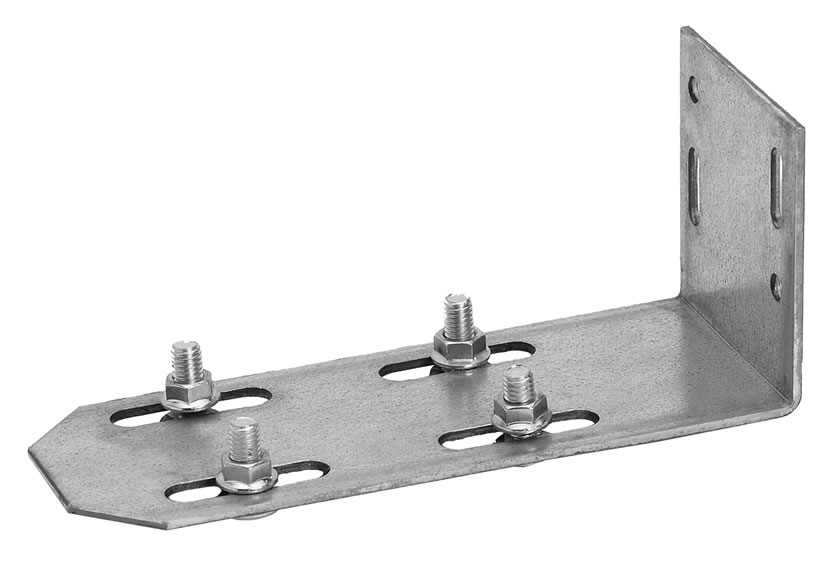

#60 DGRB Double Guide Rail Bracket
For use with #64 Guide Rail. Slotted hole in each leg allows both later and vertical adjustments. Bolts and nuts included.

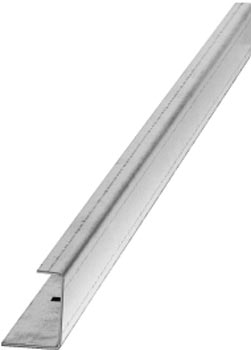

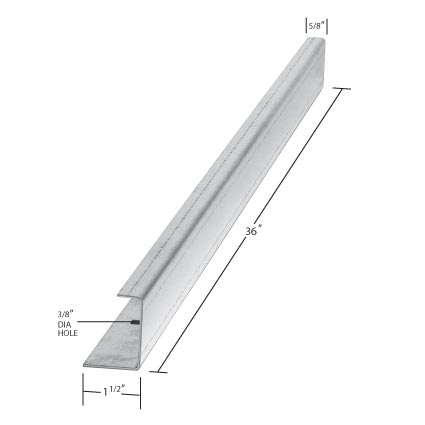

#64 Guide Rail
Fabricated from 16 gauge galvanized steel and mounts with #60 brackets. Engages the bottom door guides to hold the door in place and prevent wind damage.
Available lengths:4', 6', 8', 10'
Optional Hardware
#320 Center Guide/Stop
Center Guide and stop may be mounted to a 6" x 6" post or imbedded in concrete. Fasteners for mounting center guide are NOT included.

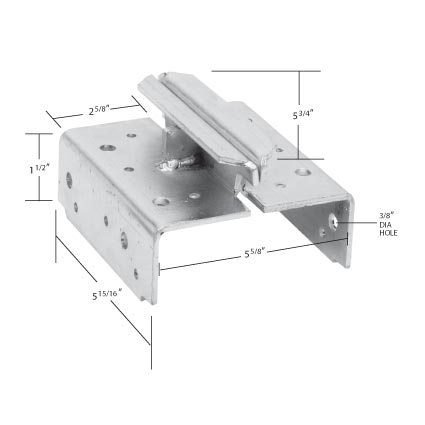

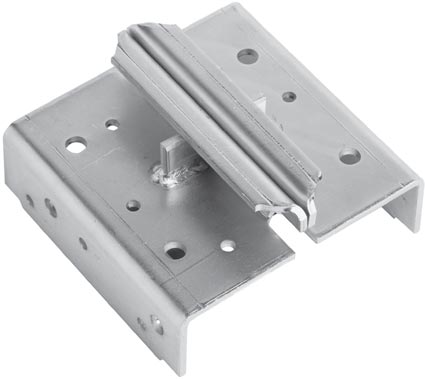

#520 Center Guide/Stop
Installs on 6 x 6 post or in concrete, in the center of split doors or a large single door. For use in pairs.

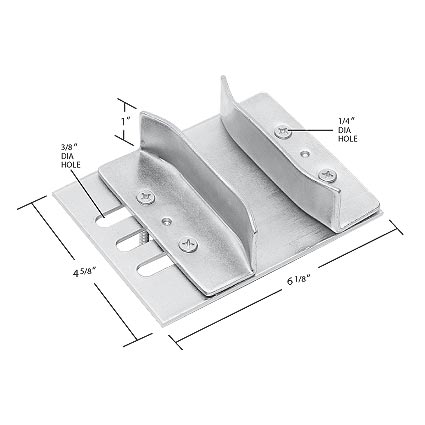

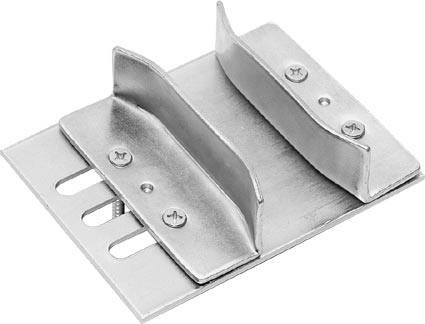

#790 Center Door Guide
Adjustable for single sliding doors 1-1/2" to 3-1/4" thick. Install as shown with screws and lead anchords after final adjustments have been made to level and plumb the door. (Fasteners included)
